SPECIFICATIONS

Accessory Type: LCD Screen

Battery Included: No

Brand Name: SHCHV

Choice: yes

Communication Interface: 4-wire SPI

Compatible With: Raspberry Pi/Jetson Nano/For Arduino Board

Display Panel: IPS

Driver: GC9A01

Feature 1: 65K RGB Colors

High-concerned chemical: None

Operate Voltage: 3.3V / 5V

Origin: Mainland China

Pixel Size: 0.135*0.135mm

Resolution: 240*240

Size: 1.28 Inch

Typical Application Fields: Other Fields

semi_Choice: yes

1.28inch Round LCD Display Module, 65K RGB Colors, 240×240 Resolution, SPI Interface

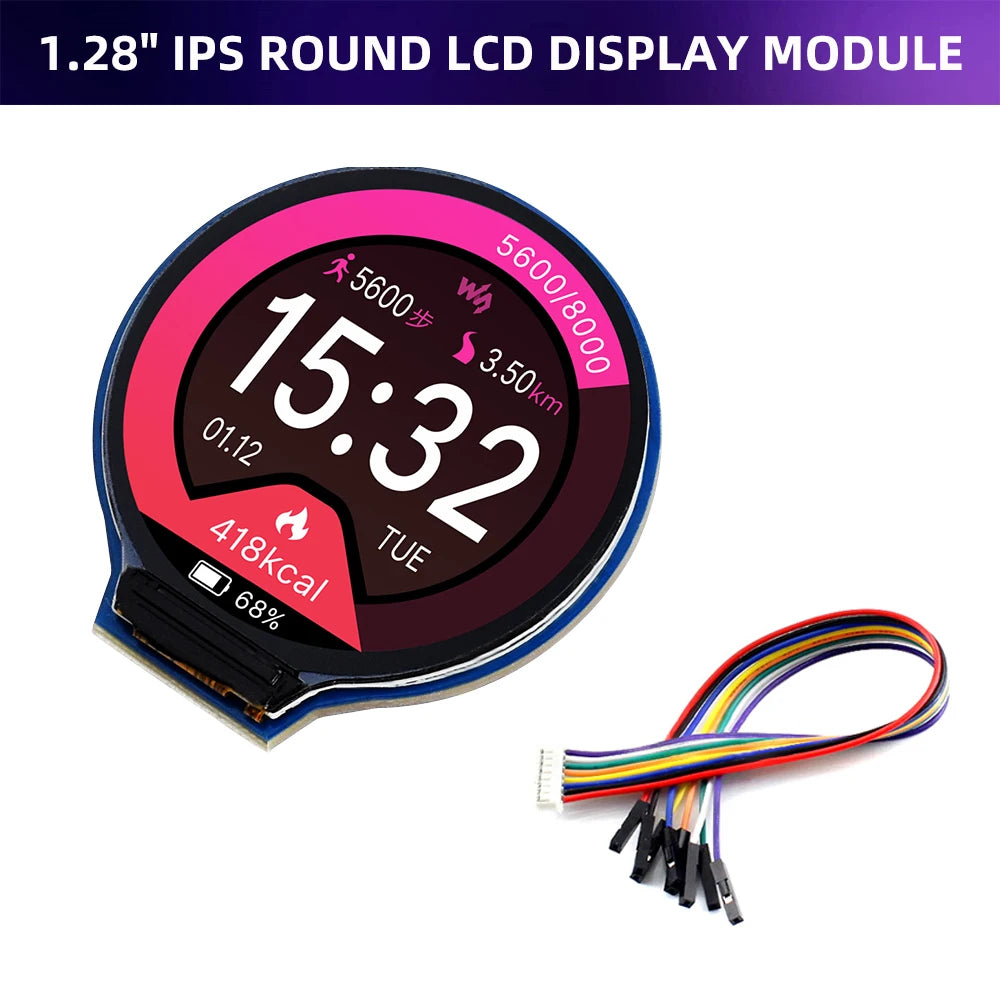

1.28" ROUND LCD DISPLAY MODULE

Embedded GC9A01 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

• Size1.28"

• Resolution240×240

• Display Color65K RGB

• InterfaceSPI

• DriverGC9A01

Features At A Glance

• 240×240 resolution, 65K RGB colors, clear and colorful displaying effect

• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE	3.3V / 5V	RESOLUTION	240 × 240 pixels
COMMUNICATION INTERFACE	4-wire SPI	DISPLAY SIZE	Φ32.4mm
DISPLAY PANEL	IPS	PIXEL SIZE	0.135 × 0.135mm
DRIVER	GC9A01	DIMENSIONS	40.4 × 37.5mm Φ37.5mm

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Hardware Connection

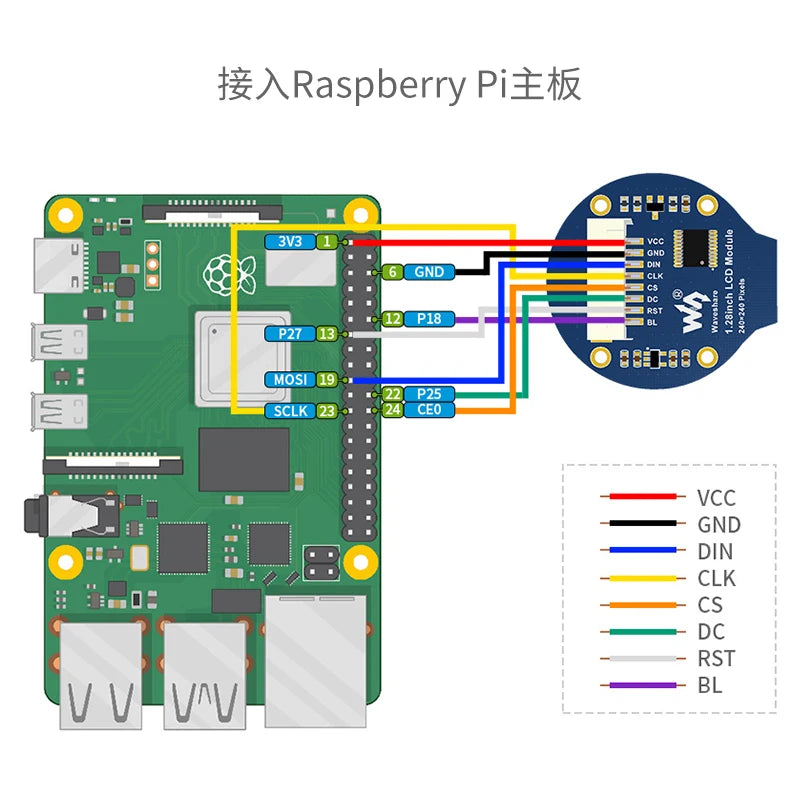

Connecting With Raspberry Pi

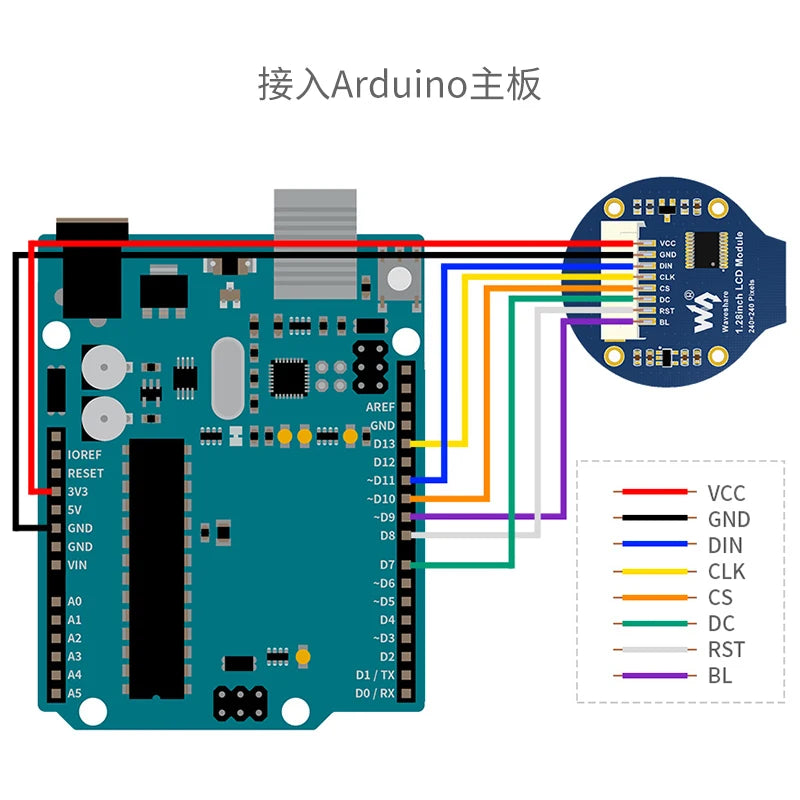

Connecting With Arduino Board

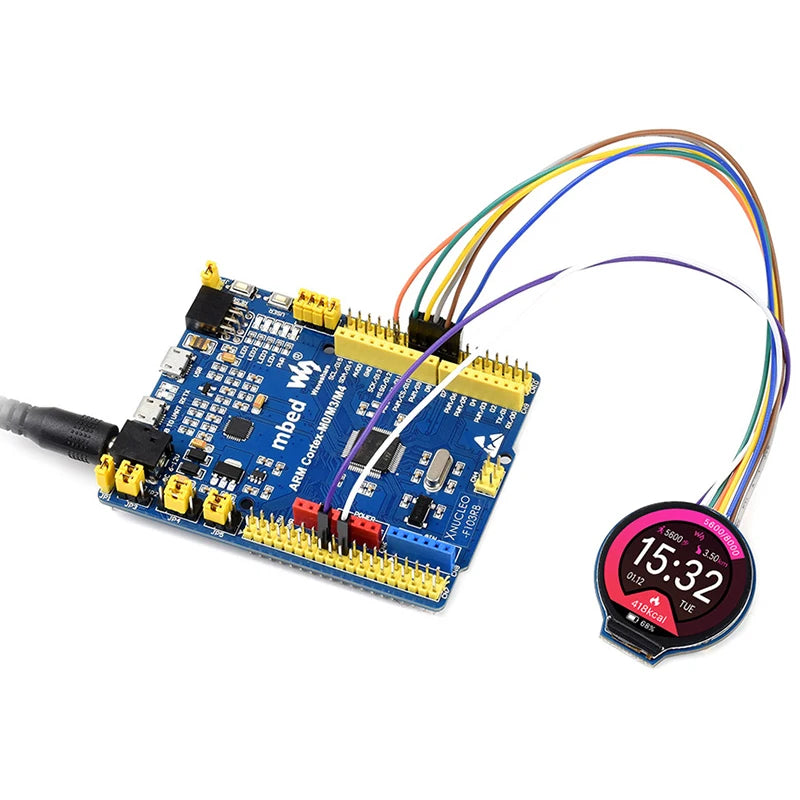

Living Example

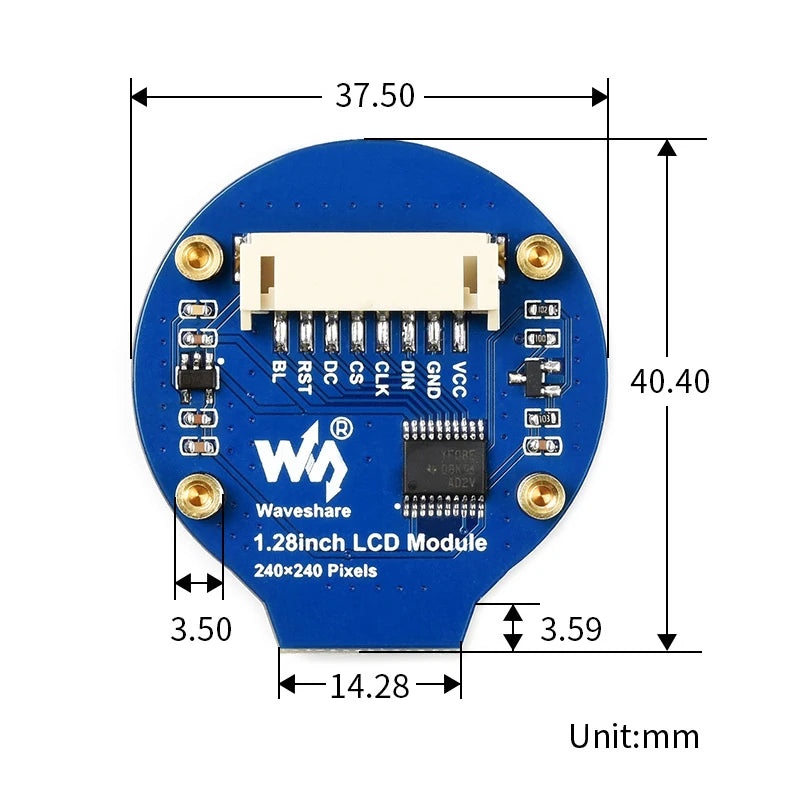

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/1.28inch_LCD_Module

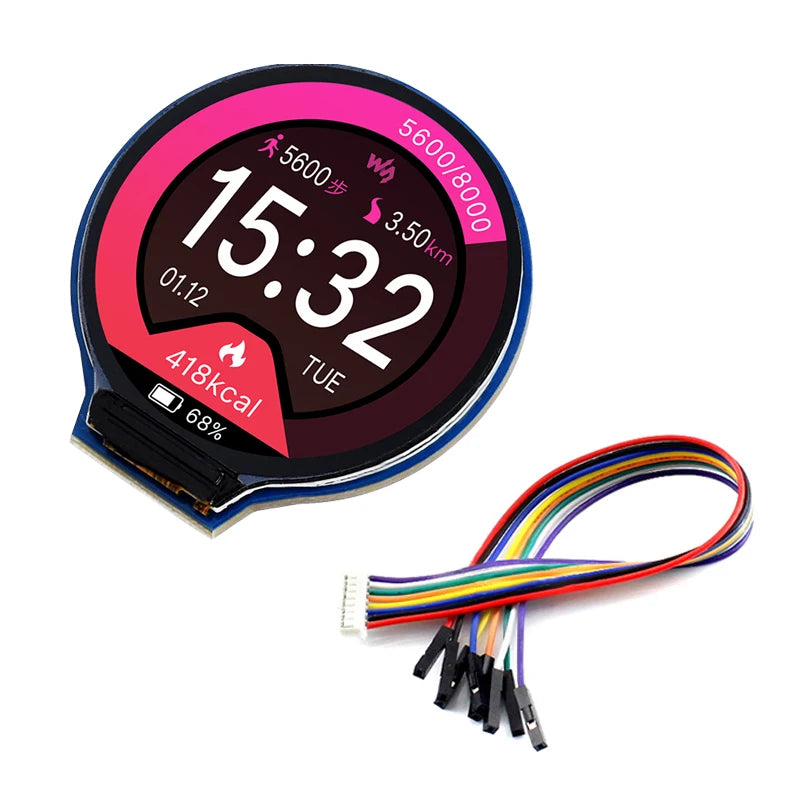

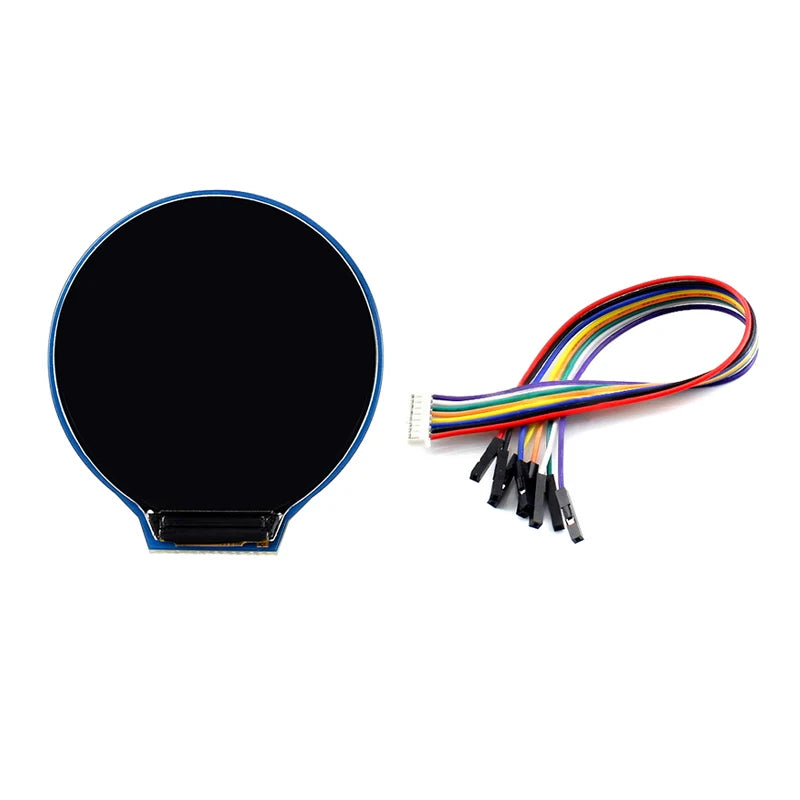

PACKAGE CONTENT

Weight:0.015 kg

1. 1.28inch LCD Module x1

2. PH2.0 8PIN 20cm cable x1
